Manley Performance 81mm STD Bore 11.0:1 Dome Piston Set with Rings | 1994-2001 Acura Integra (600100-4)

94-01 Acura Integra Sport Compact™ Platinum Series Lightweight Dome Piston Set with Rings - Set of 4 by Manley Performance

Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower.

Features

• Design: Dome
• Over Size: STD
• Rod Length (in): 5.433"
• Stroke (in): 3.425"
• Stroke (mm): 87,20 mm
• Compression Distance (in): 1.181"
• Comp Ratio: 11
• Dome Volume (cc): 1.20 cc
• Piston Weight: 293 g
• Bore Size: 3.189"
• Bore Size: 81.00 mm
• Pin Diameter (in): 0.827"
• Pin Diameter (mm): 21.00 mm
• Pin Length (in): 2.250"
• Pin Wall (in): 0.150"
• Moly Coated Skirts
• 2618 high strength material
• Pressure balance groove
• Will accommodate +1mm valve sizes
• Premium Steel top rings with Napier seconds and round wire locks included
• Recommended piston clearance .0035" measured 1.100" from the bottom of the oil ring
• Wrist Pins are 2.250"

Benefits

• Lightweight design with offset wrist pin for quiet start-ups
• "Contour forgings" provide the optimum balance between strength and weight with no grain-interrupting internal milling

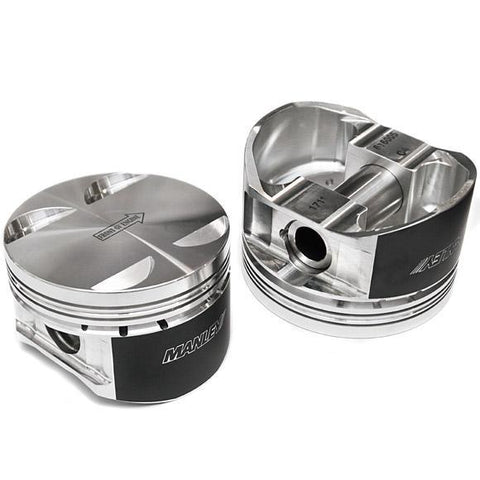

Please Note: The image provided is generic and may not be an accurate representation of the product you will receive

Applications

• 1994 - 2001 Acura Integra GS-R

What's In The Box?

• 4 - Piston
• 4 - Wrist Pin
• 4 - Spiral Lock
