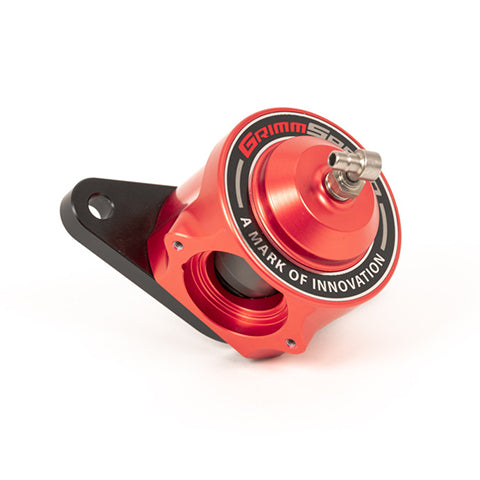

GrimmSpeed V2 Bypass Valves | 2008-2014 Subaru WRX, 2015-2021 Subaru WRX, and 2004-2021 Subaru WRX STI (126032/3/4)

$249.00 USD

Sale Sold out

Shipping calculated at checkout.

Choose Application 08-14 WRX / 05-09 LGT 15-21 WRX 04-21 WRX STI

Color Red Black

Quantity

2008-2014 Subaru WRX, 2015-2021 Subaru WRX, and 2004-2021 Subaru WRX STI

The GrimmSpeed line of Bypass Valves have been a highly sought-after product. Due to the intensive assembly process, it has been hard to keep them on the shelves, which in turn causes frustration among our customers. To address this issue, our team has worked diligently to redesign the BPV to make the assembly process more efficient, while also improving its manufacturability, performance, and overall reliability.

In testing stock bypass valves, we found internal leakage at low boost levels. To address this, we created a more durable valve that can hold double the stock pressure, while still looking stylish with other GrimmSpeed Parts.

We designed the valve body and base for each fitment from billet 6061 aluminum alloy, then anodized them in black or red to match our other existing product offerings. Doing this provided corrosion resistance and a brilliant appearance. This second iteration of our Bypass Valves come equipped with a massive 38mm diameter aluminum piston to quickly dump pressure, an important feature for to maintain leak-free operation and ensuring proper operation of a forced-induction platform. Our valves include Buna-N O-rings for resistance abrasion and any fluids that may find themselves into your intake system. A swivel fitting accommodates custom setups and allows for easy installation.

Best of all, there is no tuning required for any of our bypass valves! With the GrimmSpeed Bypass Valve installed, there is a noticeable change in sound and crispness through the intake, and the car builds boost much more quickly than with the leak-prone OEM version. The STI unit reuses the recirculating elbow from the factory BPV, ensuring precise alignment and a perfect fit, making for a total plug-and-play package.

Features

CNC-Machined 6061 Aluminum
Corrosion-resistant anodized finish, available in both red and black
Oversized 38mm anodized aluminum piston for superior flow
Swivel air fitting to aid in installation and for accommodating custom setups
No tuning or adjustment required

Changes Made in the V2 BPV

Removed the inspection port which was primarily used for quality control, but it is not required with the new design
Redesigned the internal piston to eliminate the potential failure points we saw in our V1 design
Adjusted tension of the internal spring to better suit the operating environments we've seen after further testing and development
Updated the design of the main body for a better CnC milling finish
Exchanged the internal brass piston from V1 for a lighter weight hard aluminum piston, resulting in better valve response
