DeatschWerks DW400 415LPH In-Tank Pump w/ Install Kit | Multiple Fitments (9-401-1041)

DW400 In-Tank Fuel Pump by DeatschWerks

DeatschWerks in-tank fuel pumps are manufactured with a quiet and reliable turbine impeller which is compatible with pulse width modulated pump drivers. These pumps are also built with carbon commutators and fully encapsulated armatures for ethanol compatibility.

DW’s high-torque motors maintain flow at higher pressure better than competitors’ pumps. Low amperage draw minimizes pump temperatures, maximizes pump life and reduces stress on OE wiring. Kits electrical connector and other accessories to help with installation. All DW fuel pumps are backed by a 3-year no fault warranty.

Features

• Turbine Impeller Compatible w/ Pulse Width Modulated Pump Drivers
• Built With Carbon Commutators and Fully Encapsulated Armatures (Ethanol Compatible)
• High-Torque Motors with a Low Amperage Draw
• Minimizes Temperatures, Maximizes Lifespan and Reduces Stress
• Includes an Installation Kit

Additional Considerations

• Wiring – A 400+ LPH pump draws substantial current (16-20 amps at typical operating pressures). Make sure your chassis wiring is up to the task of delivering this much current. A DW hardwire kit (part number FPHWK) is an inexpensive insurance policy.
• Size – The DW400 is a 46mm diameter pump. Standard in-tank pumps are 39mm diameter. Modifications to the fuel pump module will be necessary on some applications.
• Check-Valve – the DW400 does not have in internal check valve. An in-line check valve may be necessary for easy engine starts in some applications.

Applications

• 1998 - 2007 Subaru Forester
• 2002 - 2014 Subaru WRX
• 2004 - 2021 Subaru STI
• 1993 - 2001 Subaru Impreza
• 1990 - 2000 Subaru Legacy
• 1995 - 1999 Mitsubishi Eclipse (2G)
• 1990 - 1994 Mitsubishi Eclipse (1G)
• 1995 - 1998 Eagle Talon (2G)
• 1990 - 1994 Eagle Talon (1G)
• 1990 - 1994 Plymouth Laser (1G)

What's In The Box?

• 1 - DW400 Fuel Pump

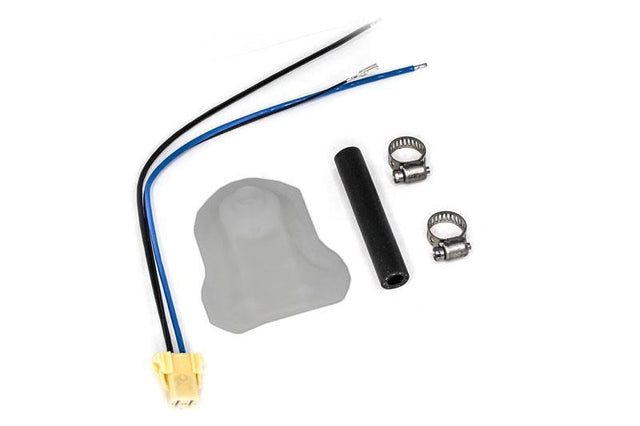

• 1 - Installation Kit
• Warranty Information

References

• DW400 Tech Sheet
• DW400 vs Walbro 450 Comparison

Warranty

• DeatschWerks 3-Year No Fault Warranty
