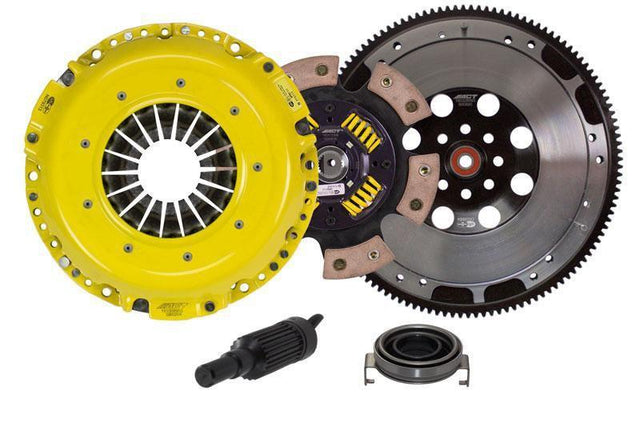

ACT XT/Race Sprung 6-Pad Clutch Kit | Multiple Subaru Fitments (SB11-XTG6)
ACT XT/Race Sprung 6-Pad Clutch Kit | Multiple Subaru Fitments (SB11-XTG6)
XT/Race Sprung 6-Pad Clutch Kit by ACT
SB11-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life.
All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.
ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Features
Feel - Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle
Life - Moderate friction life, extended by ACT's exclusive diaphragm design
Quality - Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
Recommended Use - Recommended for high horsepower street or race use
ACT Difference - 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Applications
2006 - 2020 Subaru WRX
2004 - 2008 Subaru Forester XT
2005 - 2012 Subaru Legacy GT
2005 - 2009 Subaru Outback XT
2004 - 2006 Subaru Baja Turbo
2005 - 2006 Saab 9-2X Aero
Specifications
Product Weight (lbs.): 29.0
Disc Type: Sprung Race Disc
Disc Material: Ceramic
Pad Quantity: 6
Pressure Plate Type: Xtreme
Torque Capacity (Over OE): 111%
Torque Capacity (ft/lbs.): 681
What's In The Box?
1 - 6-Pad Sprung Race Disc
1 - Xtreme Pressure Plate
1 - Flywheel
1 - Release Bearing
1 - Alignment Tool
References
Installation Instructions
Warranty
Manufacturer Standard Warranty
