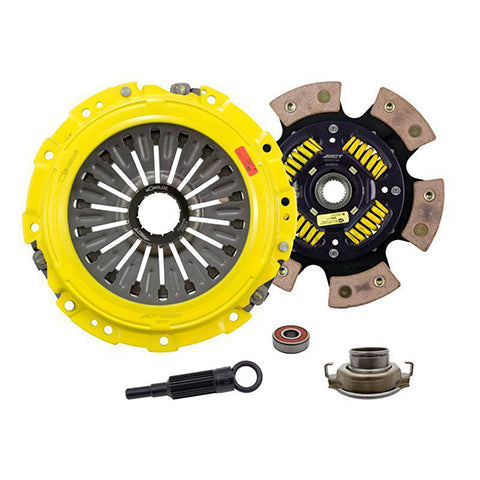

ACT HD Pressure Plate 6 Puck Sprung Disc Clutch | 2004-2021 Subaru WRX STI (SB10-HDG6)

ACT HD Pressure Plate 6 Puck Sprung Disc Clutch | 2004-2021 Subaru WRX STI (SB10-HDG6)

Regular price $769.00 USD
Regular price $986.00 USD Sale price $769.00 USD
Sale Sold out
Shipping calculated at checkout.

HD-M/Race Sprung 6 Pad Clutch Kit - SB10-HDG6

SB10-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened Chrome-moly steel construction will provide years of service.



Features

Product Weight (lbs.) 18.5

Disc Type Sprung Race Disc

Torque Capacity Over OE 88%

Torque Capacity (ft/lbs.) 668

Spline Count 24

Disc Material Ceramic

Friction Surface Diameter (Inches) 9.4

Pressure Plate Type Heavy Duty

Input Shaft Diameter (Inches) 1

Friction Surface Diameter (mm) 240

Benefits

Feel: Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle, confidence during hard shifts

Life: Moderate friction life, extended by ACT's exclusive diaphragm design, dramatic improvement in release mechanism life

Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance, major improvement in release mechanism

Recommended Use: Recommended for high horsepower street or race use

ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability, includes ACT's patented Monoloc

Applications

2004-2021 Subaru STI

2007-2009 Subaru Legacy GT spec.B

What's In The Box?

6 Pad Sprung Race Disc - 6240618

P/PL-M Heavy Duty - SB019

Pilot Bearing - PB1004

Release Bearing - RB601

Alignment Tool - AT90

References

Installation Manual

Warranty

Manufacturer 12 Month Warranty
